ADR101 rs232 serial data acquisition interface

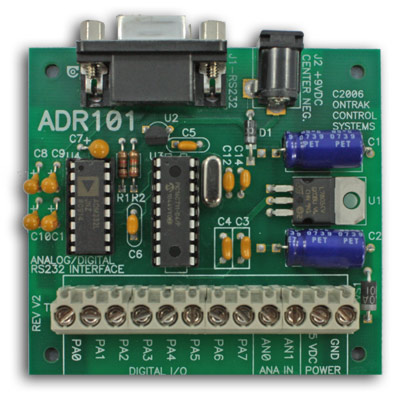

ADR101 Serial Data Acquisition Interface ( Dimensions, 3.0" X 2.8" )

The ADR101 serial data acquisition interface allows control of 8 digital I/O lines and 2, 8-bit analog inputs ( 0 - 5VDC)  via an RS232 link. This low-cost serial data acquistion interface is easy to use with Visual Basic, Basic, C, Labview, Tespoint, or other high level languages that allow access to a serial port. Designed for entry level data acquisition or control applications.

Click here to download ADR101 USER MANUAL ( PDF 452 K )

Key Benefits,  ADR101 Serial Data Acquisition Interface

  • 8 Digital I/O Lines. ( Sink 25mA/ Source 20mA )
  • 2, 8 - Bit Analog Inputs ( 0 - 5 VDC )
  • On-Board 5VDC Regulator Provides 5VDC to External Circuitry.
  • RS232 Cable, User Manual, Application Notes Included
  • Operates on Standard 9VDC Wall Adaptor

Specifications,  ADR101 Serial Data Acquisition Interface

Supply Voltage 5VDC +/- 10% or 9VDC via wall adaptor
Supply Current 15mA Typical, 30mA Max.
Operating Temperature 0 - 50C
ANALOG INPUTS (2)
Input Voltage Range 0 - 5 VDC
Input Capacitance 1.2nF Typical
Input Impedance >20Mohm
DIGITAL I/O (8)
Sink Current 25mA Max.
Source Current 20mA Max
Vout High 4.00V Minimum
Vout Low 0.8V Maximum
Vin High 2.2V Minimum
Vin Low 0.8V Maximum
SERIAL PORT ( RS232)
Type RS232,  9600 Baud, 8 bit words,1 stop bit,1 start bit, no parity

Pricing,  ADR101 Serial Data Acquisition Interface ( Includes RS232 Cable )

Description $US
ADR101 $99.00
ADRPWR ( power adaptor ) $12.95
