ADU mounting options



The ADU series of products are available with a variety of mounting options. These options include, Table-Top ( standard ), Flange, DIN Rail, or Velcro mount.

Table -Top  ( Standard )



Fig 1 : ADU200 Table-Top  Version

The Table-Top option is standard with all ADU devices and includes 4 rubber mounting feet  that can be applied to the bottom of the enclosure.


Click for PDF Format of Table -Top Drawing



Flange Mount



Figure 2 : ADU218 Flange-Mount  Version

The Flange option is shipped with two flanges for panel mounting of ADUxxx devices. to specify a flange mount, add   " -FLANGE"  to the part number. This option is no charge, however, it must be specified at time of ordering.      Ex :  ADU218-Flange


Click for PDF Format of Flange Drawing



DIN Rail Mount

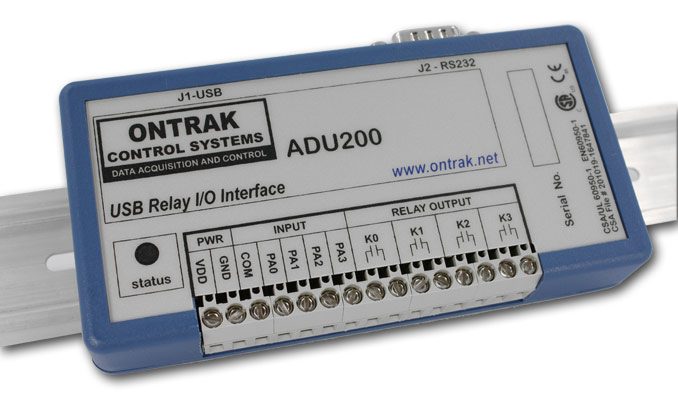

Figure3 : ADU200 DIN-Rail  Version

The DIN Rail option is shipped with two DIN Rail clips to allow   mounting of ADUxxx devices on standard 35mm DIN Rail. To specify a DIN Rail option, add  " -DIN " to the part number. This option adds $5USD to the unit price of the ADU device. IMPORTANT: The DIN Rail option does not include any DIN rail. It only includes the clips fastened to the bottom of the ADU case to facilitate mounting on standard 35mm DIN Rail.

Ex :  ADU200-DIN


Click for PDF Format of DIN Rail Drawing



Velcro Mount

TheVelcro option is shipped with a self adhesive velcro strip ( both sides ) 2" X 5" to facilitate  mounting of ADUxxx devices on smooth surfaces. To specify the  Velcro option, add  " -VEL " to the part number. This option adds $5USD to the unit price of the ADU device.

Ex :  ADU200-VEL
