Description

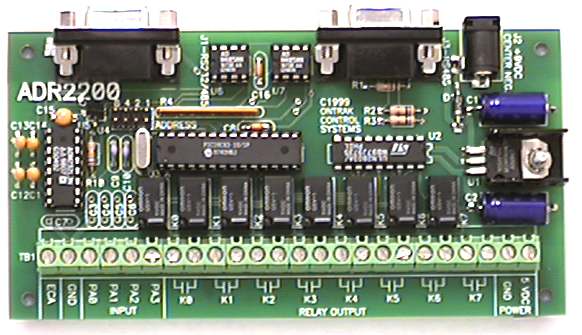

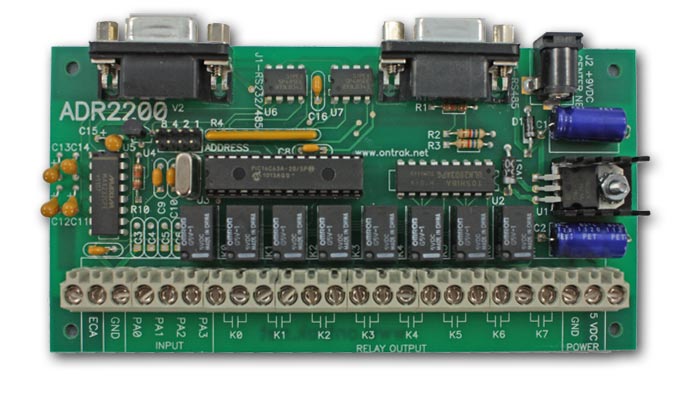

The ADR2200 relay I/O interface allows control of 8 relay contact outputs, 4 contact or TTL inputs, and one event counter via an RS232 or RS485 link. The ADR2200 can effectively convert a standard PC to a powerful PLC (programmable logic controller). This low-cost serial relay contact interface is easy to use with Visual Basic, Basic, C, Labview, Testpoint, or other high level languages that allow access to a serial port. The ADR2000 series of data acquisition interfaces are daisy chainable up to ten units. All ADR2000 series boards contain RS232 to RS485 converters.

Dimensions: 5.4" X 2.8"
Click here to download the ADR2200 User Manual

NOTE: This product is also available in a 5 AMP version, see ADR2205

Key Features

• Provides a Standard PC with PLC (programmable logic controller) functions.
• Low Cost
• 8 Relay Contact Outputs N.O. 0.5A @ 120VAC, 1A @ 30VDC
• 4 Digital Inputs Suitable for Contact or TTL Input
• Interrupt Capabilities on Digital Inputs to Eliminate Polling by Host Computer
• 32 Digital I/O Lines (Sink/Source 20mA)
• 4 digital I/O lines with software programmable pull-ups and interupt capability for keypad input
• Dual Stepper Motor Indexer on-board.
• One, Versatile 16-bit Event Counter
• Match-On-Count Interrupt Capabilities on Event Counter to Eliminate Polling by Host Computer
• RS232,RS485 Communication
• Transparent RS232 Port at each Node in Daisy-Chained Application
• Daisy-Chain Capabilities (Up to 10 boards) (80 contacts total)
• Compatible with all ADR2000 Series Products
• Operates on standard 9VDC wall adaptor or 7 -15 VDC

Technical Specification

Supply Voltage	5VDC or 7-15VDC
Supply Current (Relays De-energized)	40mA Typical 50mA Max
Supply Current (All Relays Energized)	250mA Typical 300mA Max
Operating Temperature	0-50C
Contact Outputs (8)
Type	Normally Open
AC Ratings	0.5Amp @ 120VAC MAX
DC Ratings	1 Amp @ 30VDC MAX
Relay Approvals	UL, CSA
Digital Inputs (4)
Sink Current	N/A
Source Current	N/A
Event Counter (2)
Resolution	16-bit
Input Type	Contact or TTL
Max Frequency	250Khz
SERIAL PORT (RS232)
Type	RS232 and RS485 9600 Baud (Higher baud rates available by special order up to 56K)
Daisy-Chain	Up to ten boards

Pricing

The ADR2200 ships with user manual and a 6' RS232 cable.
