Serial Data Acquisition Products (DAQ)

Table 1 : ADU200 Series USB Relay I/O Interfaces (Mechanical)
Table 2 : ADU200 Series USB Relay I/O Interfaces (Solid-State) 8-Channel
Table 3 : ADU200 Series USB Relay Interfaces (Solid-State) 2-Channel
Table 4 : ADU70 \ ADU100 Series USB Data Acquisition and Control Interfaces
Table 5 : ADR100 ( RS232 ) and ADR1000 ( RS232/422/485) Series
Table 6 : ADR2000 Series ( RS232, RS485 ) Analog / Digital I/O
Table 7 : ADR2200 Series ( RS232, RS485 ) Relay I/O Modules
The ADU series products offer USB connectivity using standard HID drivers included with Windows, XP, Vista and Windows 7, 8, or 10.

When connected to a serial port, (RS232, RS422, RS485) the ADR interface boards allow control of analog (A/D and D/A), digital I/O, relay contacts and event counters using simple ASCII commands.

NOTE : Visit our programming section for tutorials on the use of ADR and ADU interfaces with BASIC, Visual Basic, VB.NET , C, C++, VB.NET, JAVA,  Labview and TestPoint.

Table 1 : ADU200 Series USB Relay I/O Interfaces ( Mechanical )

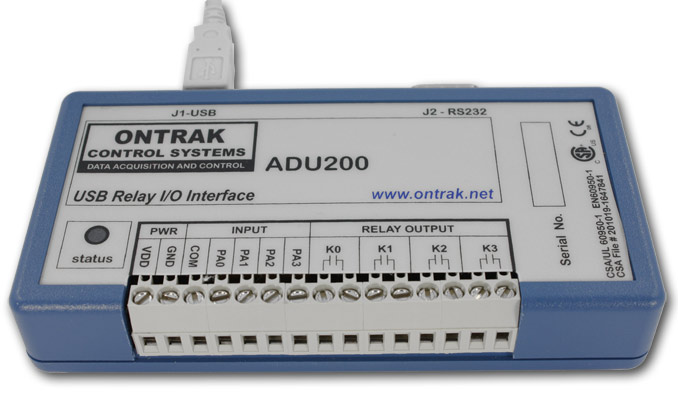

ADU200
View Larger Image
 ADU200 Web Page

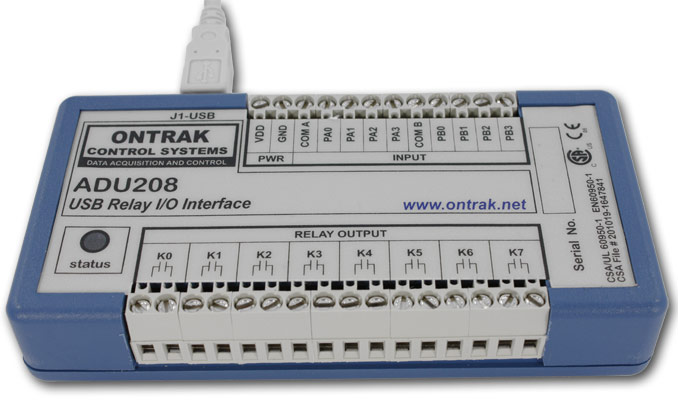

ADU208
View Larger Image
ADU208 Web Page

Digital I/O 4-Input ( TTL, Contact, DC up to 24VDC ) Isolated 8-Input ( TTL, Contact, DC up to 24VDC ) Isolated
Relay Outputs 4 - N.O. ( TYPE A ) 8 - N.O. ( TYPE A )
AC Rating 5.0A @ 120VAC 5.0A @ 120VAC
DC Rating 5.0A @ 30VDC 5.0A @ 30VDC
Event Counters 4, 16-bit 8, 16-bit
SPECIAL FEATURES Slave RS232 Port Programmable Watchdog Timer
Certifications   ( CSA/UL)         ( CSA/UL)
Available NOW NOW
Price

$USD

QTY 1, QTY 10

$139.00 $119.00

QTY 1, QTY 10

$189.00 $169.00



Table 2 : ADU200 Series USB Relay I/O Interfaces ( Solid-State ) 8-Channel

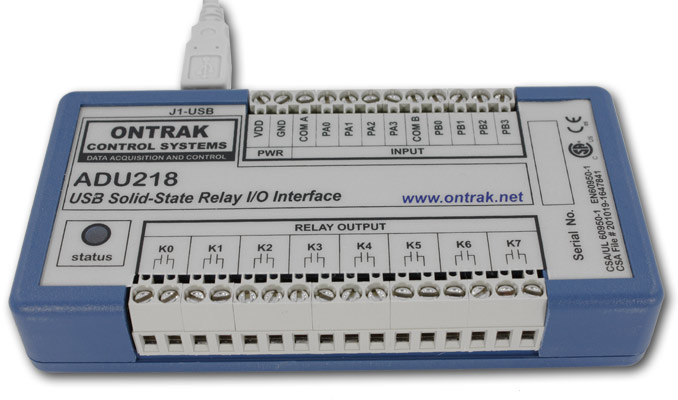

ADU218
View Larger Image
ADU218 Web Page
ADU228


ADU228 Web Page
ADU258


ADU258 Web Page
Digital I/O 8-Input ( TTL, Contact, DC up to 24VDC )
Isolated
8-Input ( TTL, Contact, DC up to 24VDC )
Isolated
8-Input ( TTL, Contact, DC up to 24VDC )
Isolated
Relay Outputs 8 - N.O. ( TYPE A )
Solid-State ( PhotoMOS )
8 - N.O. ( TYPE A )
Solid-State ( PhotoMOS )
8 - N.O. ( TYPE A )
Solid-State ( PhotoMOS )
AC Rating 1.0A @ 120VAC 2.0A @ 120VAC 5.0A @ 30VAC
DC Rating 1.0A @ 120VDC 2.0A @ 120VDC 5.0A @ 48VDC
(Suitable for 5V,12V,24V or 48V applications.)
Event Counters 8, 16-bit 8, 16-bit 8, 16-bit
SPECIAL FEATURES Programmable Watchdog Timer Programmable Watchdog Timer Programmable Watchdog Timer
Certifications     ( CSA/UL)      ( CSA/UL)     ( CSA/UL)
Available NOW FEB 2018 FEB 2018
Price

$USD

QTY 1, QTY 10

$225.00 $199.00

QTY 1, QTY 10

$245.00 $210.00

QTY 1, QTY 10

$245.00 $210.00


Table 3 : ADU200 Series USB Relay Interfaces ( Solid-State ) 2-Channel

ADU222

 ADU222 Web Page
ADU252

ADU252 Web Page

Digital I/O None None
Relay Outputs 2 - N.O. ( TYPE A )
Solid-State ( PhotoMOS )
2 - N.O. ( TYPE A )
Solid-State ( PhotoMOS )

AC Rating 2.0A @ 120VAC 5.0A @ 30VAC
DC Rating 2.0A @ 120VDC 5.0A @ 48VDC
(Suitable for 5V,12V,24V or 48V applications.)

Event Counters None None
SPECIAL FEATURES Programmable Watchdog Timer Programmable Watchdog Timer
Certifications   ( CSA/UL)      ( CSA/UL)
Available NOW NOW
Price

$USD

QTY 1, QTY 10

$139.00 $119.00

QTY 1, QTY 10

$139.00 $119.00



Table 4 : ADU70 & adu100 Series USB Data Acquisition Interfaces

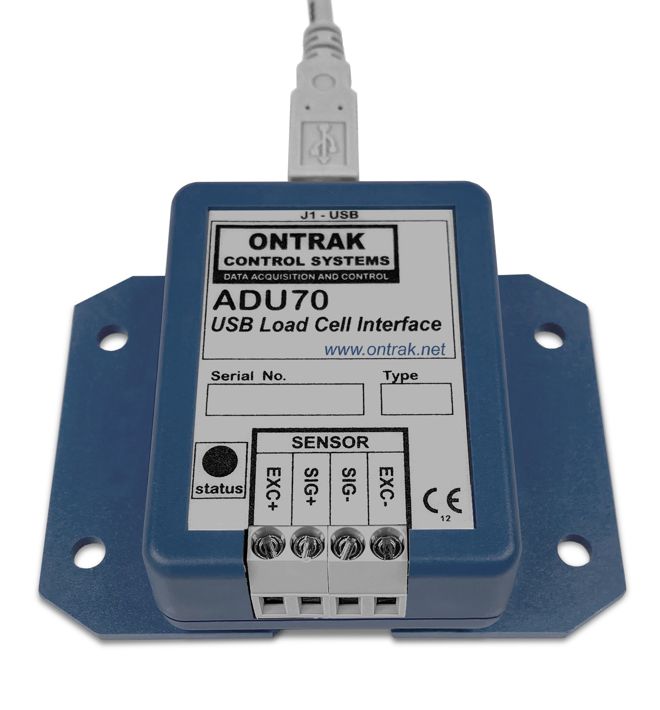

ADU70


ADU70 Web Page
ADU71

ADU71 Web Page
ADU72

ADU72 Web Page
ADU100

View Larger Image
ADU100 Web Page
Analog Inputs 1,24-Bit load cell/bridge sensor interface.
( Isolated )
Up to 150 samples/second
NONE 1-Current
16-Bit, 0-20mA , 4-20mA ( Isolated )
500 samples/second
Direct connection to 2, 3 or 4 wire process transmitters.
ISOLATED -3000V

3, 16-Bit with PGA

( 1, High Level 0-5,0-10,+/-5,+/-10)

( 2, Low Level,0-20mv to 0-2.5V )

Analog Outputs NONE 1-16 Bit, 4-20mA ,0-20mA NONE NONE
Digital I/O NONE NONE   4 TTL I/O Lines
Relay Outputs NONE NONE   1 - N.O. ( TYPE A )
AC Rating N/A N/A N/A 5.0A @ 120VAC
DC Rating N/A N/A N/A 5.0A @ 30VDC
Event Counters NONE NONE NONE 4, 16-bit
SPECIAL FEATURES 5.00VDC Bridge Excitation Integrated 24V Loop Power Supply with 2500V Isolation Integrated 24V Loop Power Supply with 2500V Isolation Slave RS232 Port
CE Compliant
Flange Mount Standard
DIN Rail Mount Available
3000V Isolation
CE Compliant
Flange Mount Standard
DIN Rail Mount Available
2500V Isolation
CE Compliant
Flange Mount Standard
DIN Rail Mount Available
2500V Isolation
+5.000 and +2.500 ref. outputs for use with strain gauge or potentiometer transducers. The two low level inputs operate SE or in DIFF mode.
Available NOW NOW NOW NOW
Price

$USD

QTY 1, QTY 10

$169.00USD, $149.00USD
QTY 1, QTY 10

$169.00USD, $149.00USD
QTY 1, QTY 10

$169.00USD, $149.00USD
QTY 1, QTY 10

$199.00 $189.00


Table 5: ADR100 (RS232) and ADR1000 Series (RS232/RS485/RS422)

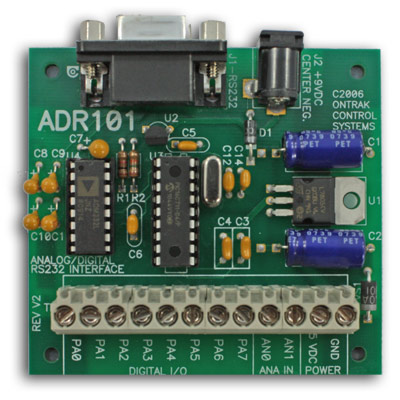

ADR101

View Larger Image
ADR101 Web Page

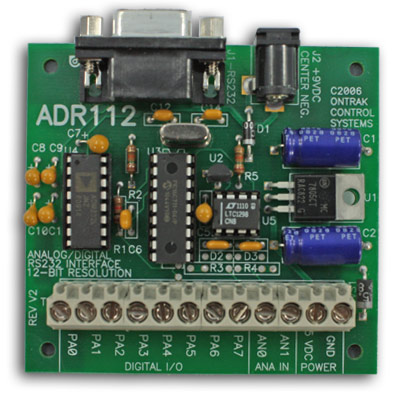

ADR112

View Larger Image
ADR112 Web Page
Analog Inputs 2, 8-bit 2, 12-bit
Range 0-5VDC 0-5VDC
Digital I/O 8 8
(sink/source) (20mA/20mA) (20mA/20mA)
Analog Outputs NONE NONE
PWM NONE NONE
Event Counters NONE NONE
Com Ports RS232 RS232
Daisy Chain No No
Available NOW NOW
Price

$USD

$99.00

$129.00


Table 6 : ADR2000 Series ( RS232/ RS485 ) Analog/Digital I/O

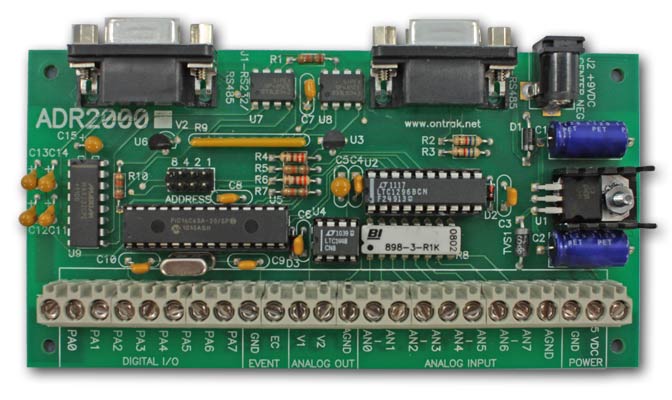

ADR2000
View Larger Image
ADR2000 Web Page

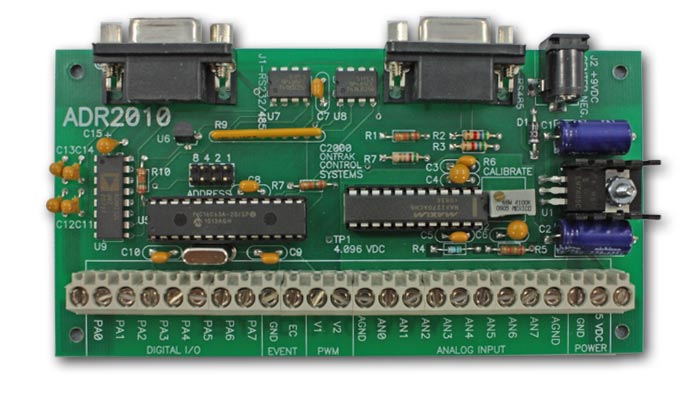

ADR2010
View Larger Image
ADR2010 Web Page

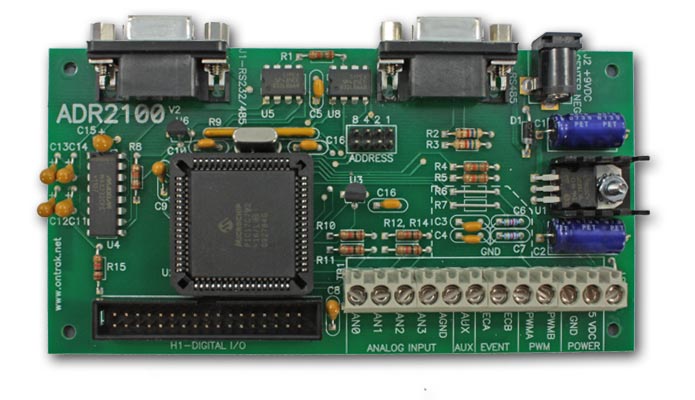

ADR2100
View Larger Image
ADR2100 Web Page
Analog Inputs 8, 12-bit 8, 12-bit 4, 10-bit
Range 0-5 or +/-5VDC 0-5,0-10,+/-5,+/-10VDC 0-5VDC
Digital I/O 8 8 32
(sink/source) (20mA/20mA) (20mA/20mA) (20mA/20mA)
Analog Outputs 2, 12 bit (VER A) NONE NONE
PWM 2, 10-bit ( VER B ) 2, 10-bit 2, 10-bit
Event Counters 1, 16-bit 1, 16-bit 2, 16-bit
Com Ports RS232,485 RS232,485 RS232,485
Daisy Chain Up to ten boards Up to ten boards Up to ten boards
Available NOW NOW NOW
Price

$USD

(VER B)

$225.00

$225.00

$199.00


Table 7 : ADR2200 Series ( RS232/ RS485 ) Relay I/O Modules

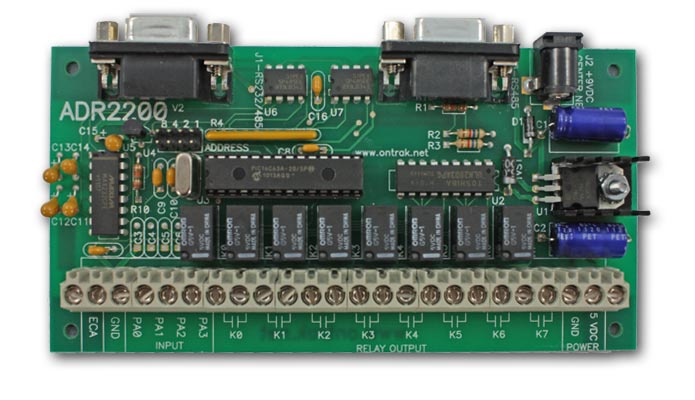

ADR2200
View Larger Image
ADR2200 Web Page

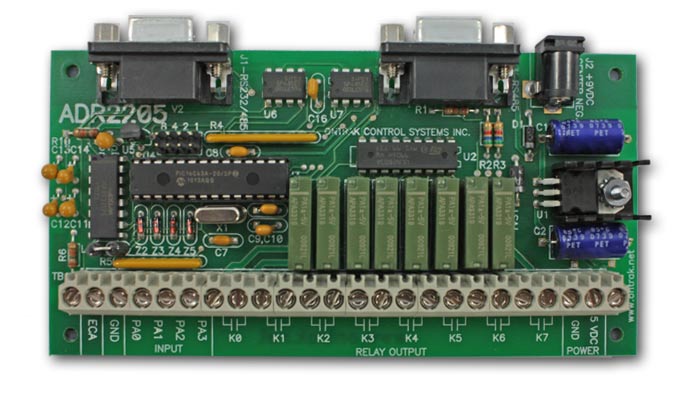

ADR2205
View Larger Image
ADR2205 Web Page




Digital I/O 4 Input ( TTL or Contact ) 4 Input ( TTL, Contact, DC up to 24VDC )
Relay Outputs 8 - N.O. ( TYPE A ) 8 - N.O. ( TYPE A )
AC Rating 0.5A @ 120VAC 5.0A @ 120VAC
DC Rating 1.0A @ 30VDC 5.0A @ 30VDC
Event Counters 1, 16-bit 1, 16-bit
Com Ports RS232,485 RS232,485
Daisy Chain Up to ten boards Up to ten boards
Available NOW NOW
Price

$USD

$149.00

$189.00




ADU70  USB Load Cell Interface, 24-bit, 5.000 V excitation. Best in class bridge measurements.

ADU71  USB 4-20mA, 0-20mA current transmitter. Features 16-Bit resolution, 2500V isolation and a built in 24VDC loop power supply.  Use with external resistors to control VFD's, valves, etc with 0-5VDC, 1-5VDC or 0-10VDC inputs.

ADU72  USB to Current Input interface enables measurement of  4-20mA and 0-20mA signals from standard process transmitters via a single USB connection. The ADU72 internally generated 24VDC loop supply eliminates the need for an external loop power supply allowing direct connection of 2-wire process transmitters.

ADU200 USB Relay I/O Interface
USB Based, 4 Relay Contact Outputs ( 5 AMP ), 4 contact inputs and 4 event counters.
ADU100 USB Data Acquisition ( 16 Bit ) Interface
USB Based, ISOLATED 16-bit A/D with PGA and relay output.
ADU208 USB Relay I/O Interface ( 8 Channel )
USB Based, 8 Relay Contact Outputs ( 5 AMP ), 8 contact inputs and 8 event counters.
ADU218 USB Solid-State Relay I/O Interface
USB Based, 8 Solid-State Relay Contact Outputs ( 1 AMP ), 8 contact inputs and 8 event counters.

ADU228 USB Solid-State Relay I/O Interface
USB Based, 8 Solid-State Relay Contact Outputs ( 2 AMP ), 8 contact inputs and 8 event counters.
  • ADU258 USB Solid-State Relay I/O Interface
    USB Based, 8 Solid-State Relay Contact Outputs ( 5 AMP ), 8 contact inputs and 8 event counters.
    ADU222 USB Solid-State Relay I/O Interface
    USB Based, 2 Solid-State Relay Contact Outputs ( 2 AMP ).
    ADU252 USB Solid-State Relay I/O Interface
    USB Based, 2 Solid-State Relay Contact Outputs ( 5 AMP ).
    ADR101 RS232 Data Acquisition Interface DAQ
    Our lowest-cost solution. RS232 to 8 digital I/O lines and two, 0 - 5 VDC 8-bit analog inputs. Powered by a standard 9VDC wall adaptor.
    ADR112 RS232 Data Acquisition Interface DAQ
    Identical to the ADR101 except analog inputs feature 12-bit resolution.

    ADR2000 RS232, RS485 Data Acquisition Interface DAQ
    RS232 and RS485 ports, 8 single-ended or 4 differential analog inputs, 0 -5 VDC or +/-5VDC. Range selected in software. 2, 12 bit analog outputs ( 0-5VDC) or 2, 10-bit PWM outputs, 8 digital I/O lines and one event counter which accepts contact or TTL inputs.
    ADR2100 RS232, RS485 Data Acqusition Interface With Stepper Motor Indexer DAQ
    RS232 and RS485 ports, 32 digital I/O lines, 4 single-ended 10-bit analog inputs, 0 -5 VDC. 2, 10-bit PWM outputs, and two event counters which accept contact or TTL inputs. Four digital I/O lines with interrupt capabilities. Complete dual stepper motor indexer.
    ADR2010 RS232, RS485 Data Acquisition Interface DAQ
    RS232 and RS485 ports, 8 single-ended analog inputs, 0 -5 VDC, 0-10VDC, +/-5VDC, +/-10VDC. Range selected in software. 2, 10-bit PWM outputs, 8 digital I/O lines and one event counter which accepts contact or TTL inputs.
    ADR2200 RS232, RS485 Relay I/O Interface
    RS232 and RS485 ports, 8 relay contact outputs ( 0.5A@125VAC 1A@30VDC ), 4, TTL or contact input lines , and one event counter which accepts contact or TTL inputs.

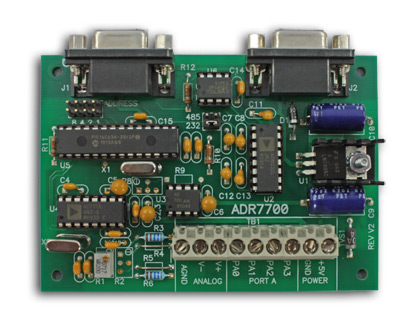

    ADR7700 RS232, RS485 Data Acquisition Interface
    RS232 and RS485 ports, 16-bit analog input , 4, TTL I/O lines
    Legacy Products
    AVR8000 RS232, 8:1 Video Multiplexer/ Video Switch
    RS232 Based, 8:1 Video Multiplexer with Contact Inputs.
    ADR1000 RS232,RS422,RS485 Data Acquisition Interface DAQ
    RS232/422/485 to 32 digital I/O lines, 8, 8-bit, 0 - 5 VDC analog inputs and a 16 bit event counter, Daisy-chain up to eight boards. Requires 5VDC supply.
    ADR7700  RS232 16-Bit Analog Interface with PGA and Digital I/O

    Watch for new Data Acquisition and Control Interfaces to be announced soon.
